Wash Down Pump WD 3.4 12V Part number 02-04-014
Wash Down Pump WD 3.4 12V Part Number 02-04-014~1

02-04-014

Wash Down Pump WD 3.4 12V

Availability: Stock: On-Order
$325.45 (excluding GST)
Or, 4 easy payments of $93.57 (including GST) with Buy 02-04-014 with Afterpay.
Details:
Product Group: Boating Accessories
Product Sub Group: Pumps & Accessories
Product Sub Group 2: Wash Down Pumps
Product brand: Albin
Documents: Parts\SP\02-04-014~3 (pdf)

Description:

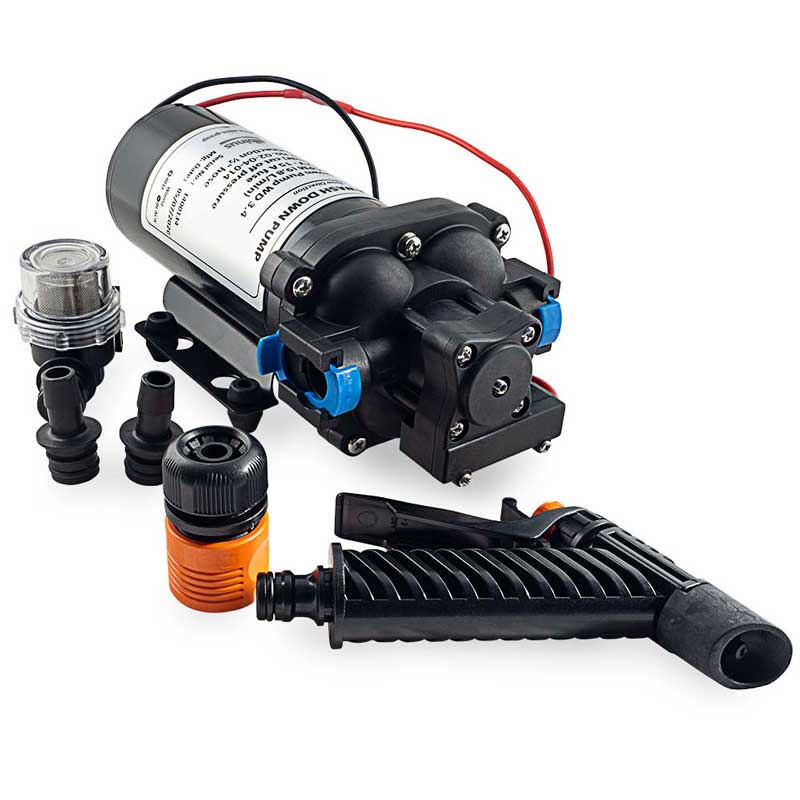

02-04-014 - Wash Down Pump WD 3.4 12V
Premium wash down pump 12V with capacity 12.9 L/min (3.4 GPM). Designed for efficient deck wash and wash down duties in marine environments. Features a 3-chamber diaphragm design with cut-off pressure of 5 bar (70 psi). Easy to install with quick disconnect ports for 1/2" hose connections; inlet strainer 40 mesh and spray nozzle included. Fuse size 15 A.

Features:
• 3-chamber diaphragm pump for smooth, pulsation-free flow and quiet operation
• Integrated extra heavy duty sealed pressure switch with cut-in at 3.7 bar (54 psi) and cut-off at 5 bar (70 psi)
• Self-priming up to 2 m (6.5 ft) vertical lift
• Quick disconnect ports for easy connection to 1/2" reinforced hose
• Built-in check valve on outlet to maintain system pressure
• Motor: 140 W, 12V DC with built-in thermal protection
• Duty cycle: Intermittent (max 20 min continuous operation)
• Max liquid temperature: +50°C (+120°F); max ambient temperature: +60°C (+140°F)
• Body: Nylon/Polyamide; valve housing: Polypropylene/Polyamide; valves: Nitrile; diaphragm: Santoprene; fasteners: Stainless steel
• Inlet strainer: 40 mesh (included) for debris protection
• Spray nozzle included for immediate wash down use
• Composite base mount for reduced vibration and quieter operation
• Manufactured according to CE standards: EN55014-1, ISO 88461, and ISO10133

Compatibility:
• Suitable for fresh water wash down systems on boats, yachts, and marine vessels
• Recommended for use with reinforced, high-pressure flexible tubing (1/2" hose)
• Compatible with Albin Pump Marine wash down accessories, such as coiled hoses (e.g., 02-65-029), expandable hoses (e.g., 02-65-031), and through-deck fittings (e.g., 02-65-035)

Performance (at 12V):
• Open flow: 12.7 L/min (3.4 GPM) at 0 bar
• At 1.0 bar (14.5 psi): 11.2 L/min (3.0 GPM), 6.8 A draw
• At 2.0 bar (29.0 psi): 10.0 L/min (2.6 GPM), 8.7 A draw
• At 3.0 bar (43.4 psi): 9.0 L/min (2.4 GPM), 10.4 A draw
• At 4.0 bar (58.0 psi): 7.7 L/min (2.0 GPM), 12.0 A draw
• At 5.0 bar (72.5 psi): 6.6 L/min (1.7 GPM), 13.4 A draw
(Performance at 13.6V battery charge: Open flow 13.7 L/min (3.6 GPM), 5.5 A)

Dimensions:
• Length (A): 245 mm (9.6 in)
• Width (B): 105 mm (4.1 in)
• Height (C): 71 mm (2.8 in)
• Weight: 3 kg (6.6 lbs)

This pump is part of the Albin Pump Marine WD series for reliable marine wash down applications.
