Description:

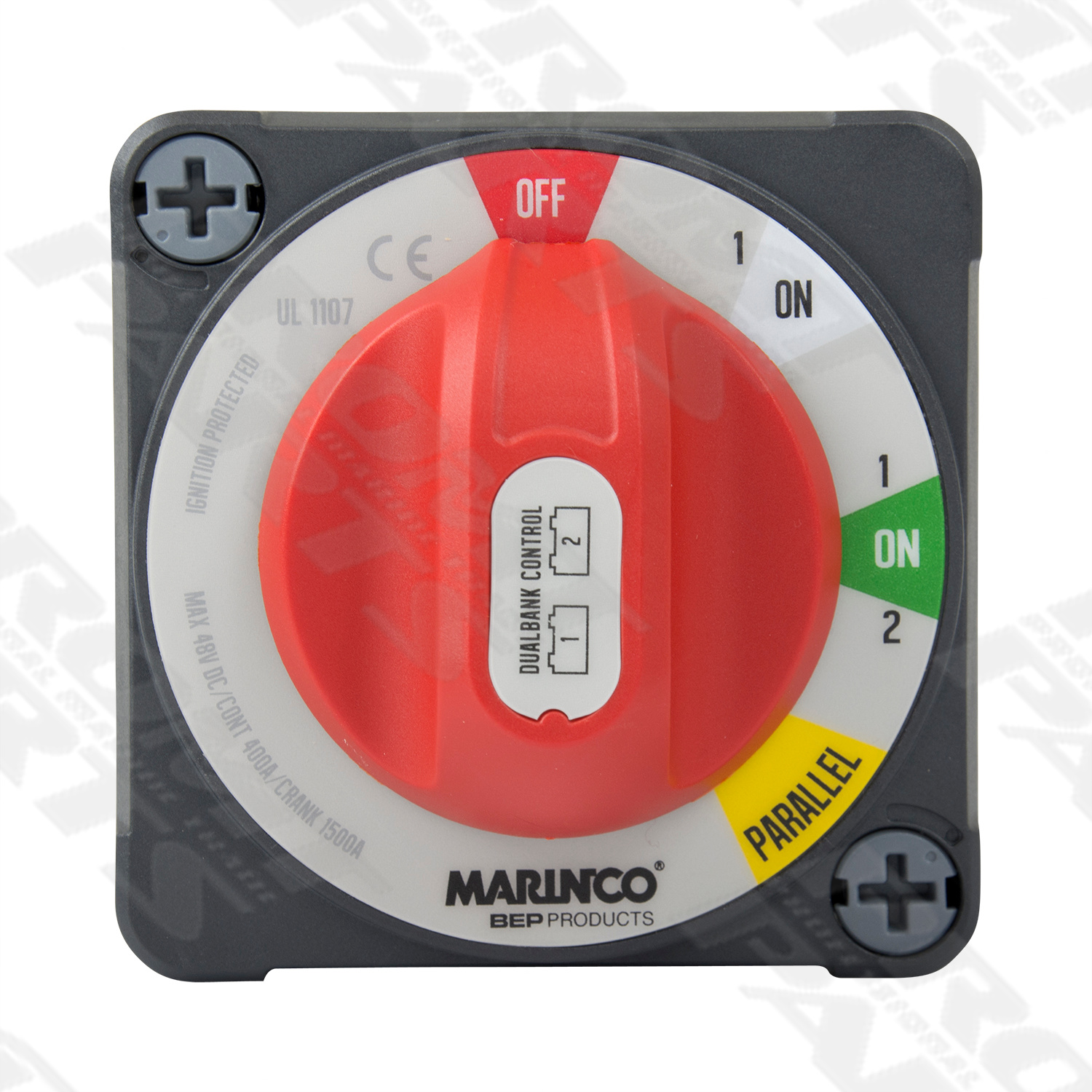

772-DBC-EZ, Pro Installer 400A EZ-Mount Dual Bank Control Battery Switch - MC10
Overview
Another addition to our multi award winning Pro Installer EZ Mount range, the innovative Dual Bank Control switch is like 3 switches in one,
House, Start, and Emergency Parallel.
Offering easy intuitive control for the boater, the Dual Bank Control switch features a unique isolated-On position which allows use
of house loads and VHF radio if the engine needs to be electrically isolated, or allows the engine to be isolated during servicing while still
providing power to house loads (for lighting, stereo, fridge etc).
Features
• Waterproof to IP67
• Same interconnection height as Pro Installer
• Removable knob allows isolation during servicing
• 3 removable side plates for protection
• Industry standard 3.85 x 3.85 inch footprint
• For surface mounting only
• Each Pro Installer battery switch is fully tested for pressure sealing, rotation force and electrically load tested
• 4x M10 (3/8 inch) Connection Studs
• Module dimensions LxWxH: 98 x 98 x 93mm (3.85 x 3.85 x 3.64 inch)
